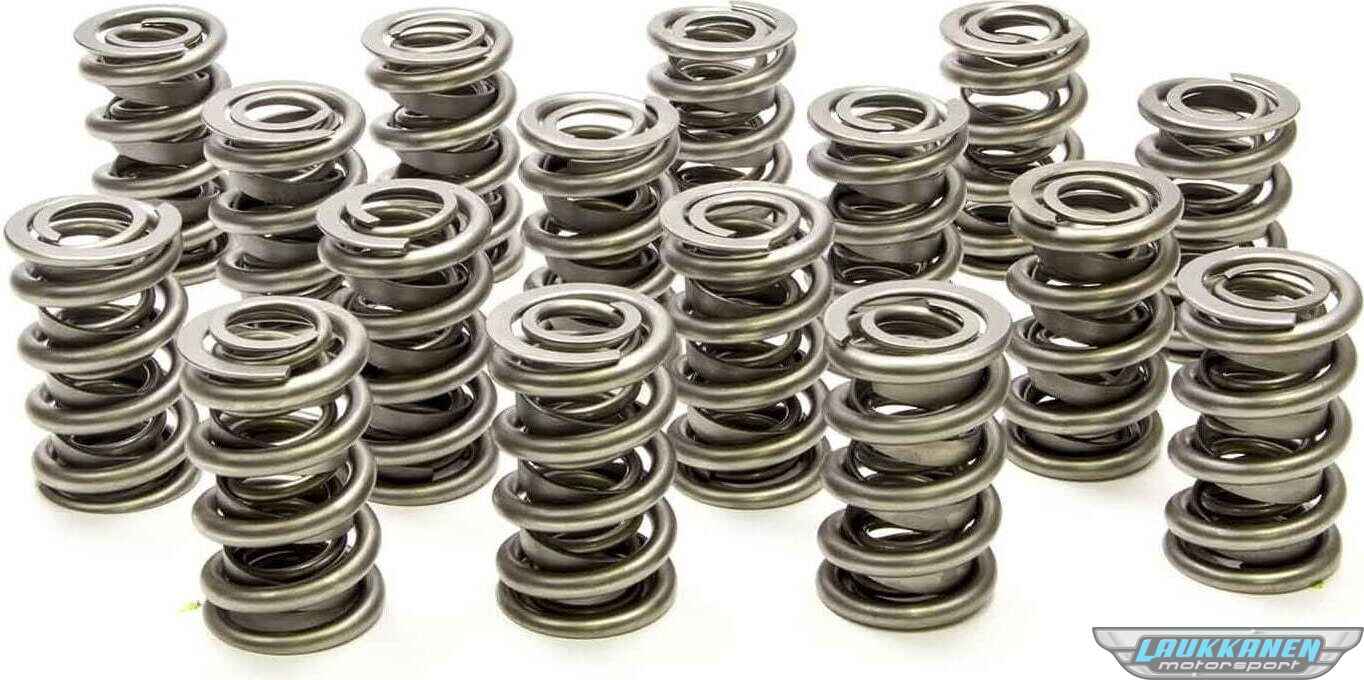

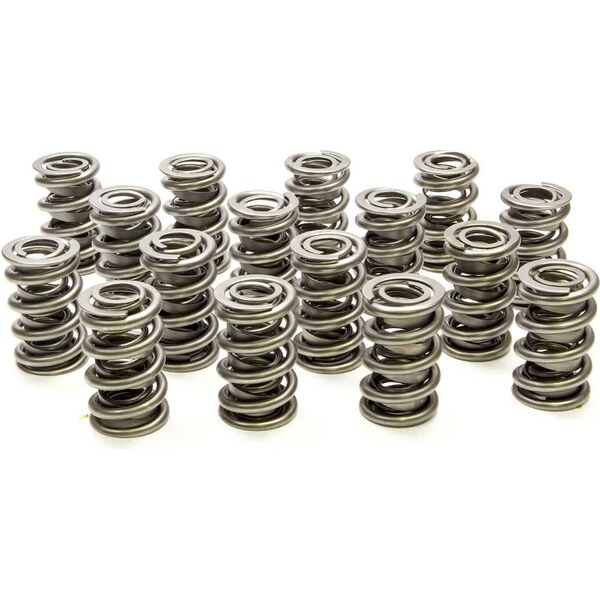

PAC Racing - PAC-1343 - 1.550 Dual Valve Springs (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Produkt beskrivelse

Valve Spring - 1300 Series Circle Track - Dual Spring - 550 lb/in Spring Rate - 1.150 in Coil Bind - 1.550 in OD - Set of 16

Additional information
Outer Diameter: 1.550 in
Inner Diameter (Outer): 1.136 in
Inner Diameter: 0.812 in
Installed Height (Valve Closed): 1.900 in
Seat Pressure @ 1.900 in: 240 lbs
Open Pressure @ 1.200 in: 765 lbs
Spring Rate: 550 lb/in
Max Valve Lift: 0.700 in
Coil Bind Height: 1.150 in

Recommended components:
Retainers (PAC 400 Series): R436
Retainers (PAC 500 Series): R536
Spring Seats: S119, S120

Application notes:
Short installed height for high roller cam applications.

racingsprings.com

Vendor Part Number: PAC-1343

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

Den omtrentlige størrelsen på det pakkede produktet eller salgspakken er 107 x 93 x 388 mm.

Vekt
2,5 kg(Produktet kan ha en lett salgspakke.)
