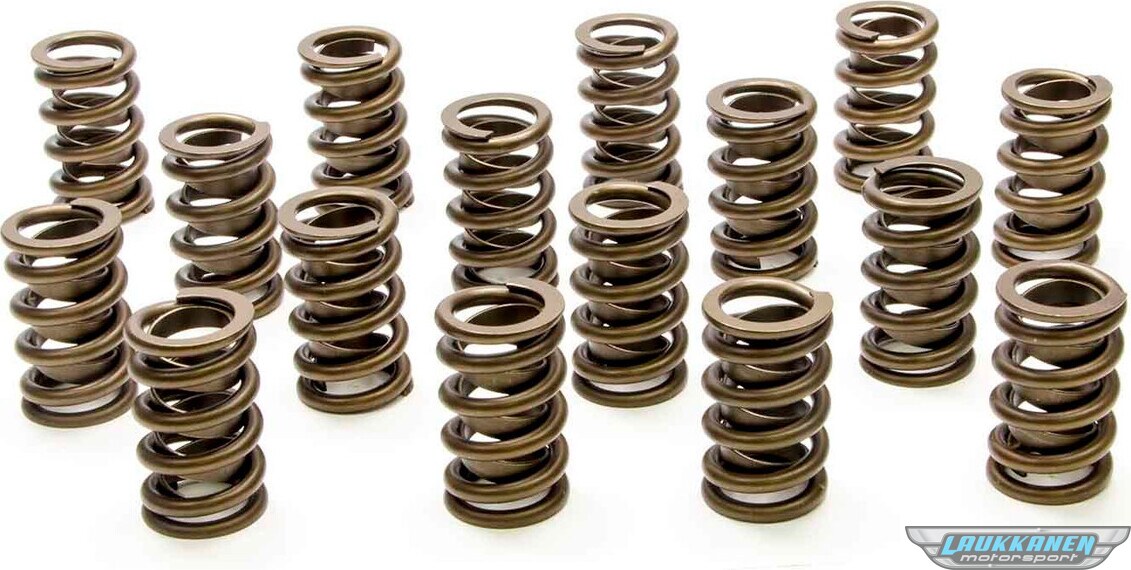

PAC Racing - PAC-1200 - 1.244 Single Valve Springs w/Damper (16)

Product Images may differ from the actual product. Image may be a representation of this item.

The price includes any freight from the supplier to the Store

Product description

Valve Spring - 1200 Series Circle Track - Single Spring / Damper - 450 lb/in Spring Rate - 1.100 in Coil Bind - 1.244 in OD - Set of 16

Additional information
Outer Diameter: 1.244 in
Outer Inner Diameter: 0.860 in
Outer Damper: Yes
Inner Diameter: 0.770 in
Installed Height (Valve Closed): 1.750 in
Seat Pressure @ 1.750 in: 125 lbs
Open Pressure @ 1.250 in: 350 lbs
Spring Rate: 450 lb/in
Max Valve Lift: 0.550 in
Coil Bind Height: 1.090 in

Recommended components:
Retainers (PAC 300 Series): R349
Retainers (PAC 600 Series): R649

Application notes:
Fits stock pocket without machining.

racingsprings.com

Vendor Part Number: PAC-1200

Pac Racing Catalog -24
Pac Racing Catalog -15

Always verify specifications with the manufacturer and engine builder before final assembly.

The approximate size of the packed product or the sales package is 102 x 92 x 388 mm.

Engine
Universal

Spring Type
Single

Weight
1,5 kg(The product may have a light retail packaging.)

Availability
Available to order from the supplier. Estimated time of arrival to us 7 - 15 day`s from order, at the earliest 11.4.2026.
