Cold Case Radiators - CHC557AK - 70-81 Camaro/Firebird LS Swap Aluminum Performance Radiator And 12 Inch Fan Kit

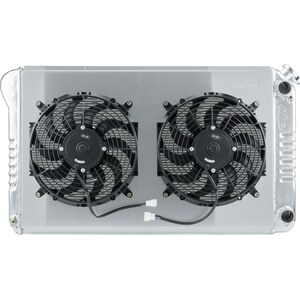

70-81 Camaro/Firebird LS Swap Aluminum Performance Radiator And 12 Inch Fan Kit.

Firebird applications will need mounting brackets.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• 2 rows of 1.25 inch tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Direct fitment for 70-81 Camaro/Firebird/Trans Am with LS motors
• Old Part Number: RFE557AK

Radiator Specs

• Core Height 18.4 inch
• Core Width 27.5 inch
• Overall Height 19 inch
• Overall Width 33.2 inch
• Overall Thickness 6 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.57 inch
• Lower Hose 1.57 inch

18.4 Inch


Leverantörens artikelnummer: CHC557AK

1970 1980 Chevrolet Camaro
1970 1981 Pontiac Firebird
1970 1981 Pontiac Firebird Esprit
1970 1981 Pontiac Firebird Formula
1970 1973 Chevrolet Camaro RS
1970 1972 Chevrolet Camaro SS
1970 1981 Pontiac Firebird Trans Am
1970 1974 Chevrolet Camaro Z28
1973 1978 Chevrolet Camaro LT
1975 1975 Chevrolet Camaro RS
1976 1978 Chevrolet Camaro LT Rally Sport
1976 1980 Chevrolet Camaro Rally Sport
1977 1981 Chevrolet Camaro Z28
1979 1981 Chevrolet Camaro Berlinetta
1981 1981 Chevrolet Camaro Sport
